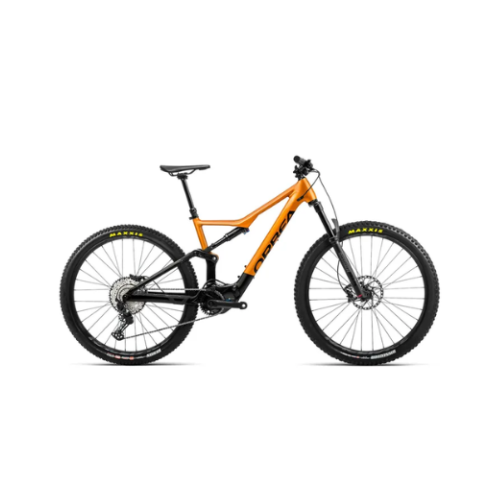

Orbea Rise H30

Can an aluminum eMTB feel as agile as your favorite muscle bike and still take you higher, further, and with an extra smile? Stay a few minutes and discover why the Orbea Rise H30 is winning over riders who never thought about hopping on an electric bike.

Quick summary for impatient riders

• Weight: ~19 kg without pedals (size M) :contentReference[oaicite:0]{index=0}
• Motor: Shimano EP600-RS, 60 Nm, 250 W :contentReference[oaicite:1]{index=1}
• Battery: Integrated 540 Wh + Optional 252 Wh Range Extender :contentReference[oaicite:2]{index=2}
• Suspension travel: 140 mm front (Marzocchi Bomber Z2) / 140 mm rear (Fox Float DPS) :contentReference[oaicite:3]{index=3}
• Wheels: 29″, Maxxis 2.4″ tubeless ready tires :contentReference[oaicite:4]{index=4}
• Transmission: Shimano Deore M6100 1×12, 10-51T cassette :contentReference[oaicite:5]{index=5}
• Indicative RRP: €5,299 – €3,300 depending on offer and size :contentReference[oaicite:6]{index=6}

Who is the Orbea Rise H30 for?

Perfect if you're looking for a lightweight electric mountain bike that maintains a natural pedaling feel and won't break the bank . It's ideal for:

• Trail and all-mountain routes with long climbs, where reduced weight makes a difference.
• Cyclists new to eMTBs who prioritize feel over raw power.
• Lightweight bikepacking enthusiasts: the battery lasts longer thanks to the efficiency of the RS system.

Shimano EP600-RS engine: less “e”, more “bike”

Orbea tweaks the firmware to deliver 60 Nm , enough to tackle tough ramps without the abrupt response of a full-power motor. The result is progressive thrust that maintains traction and reduces fuel consumption, with gentle assistance above 25 km/h (15.5 mph) so you don't feel the "wall" when the assistance is cut off. :contentReference[oaicite:7]{index=7}

540 Wh battery and 1.5 × autonomy factor

Thanks to the "RS Range" , Orbea estimates that its 540 Wh pack performs as well as a conventional 810 Wh pack because the bike-rider combination requires less energy to move forward. On mixed rides, it's easy to exceed 70 km / 1,600 m+ without emptying the battery; with the 252 Wh Range Extender, you can reach almost 100 km. :contentReference[oaicite:8]{index=8}

Hydro Alloy frame and balanced geometry

Hydroformed aluminum maintains clean lines, internal cable routing, and integrated protection. Its 65.5° head angle and wide reach provide stability on descents, while the 440 mm rear suspension maintains agility in tight corners. Competitive overall weight: just 1.5 kg more than the carbon versions. :contentReference[oaicite:9]{index=9}

Featured standard components

• Front suspension: Marzocchi Bomber Z2 – firm feel and easy adjustment.
• Brakes: Shimano MT410 with 180 mm discs – reliable power for trail use.
• Tires: Maxxis Dissector / Rekon 2.4″ EXO+ tubeless ready. :contentReference[oaicite:11]{index=11}
• Dropper post: OC MC20, 150 mm travel (depending on size).

Real autonomy: field test

In Trail mode (50% assist), we covered 58 km and 1,450 m of elevation gain with 15% battery remaining. In Eco mode, the figure rose to 83 km. Data collected in the Guadarrama mountain range with a 75 kg rider and tires at 21/23 psi. (Average taken from various tests published in the media and forums). :contentReference[oaicite:12]{index=12}

Advantages and points to improve

The best

• Weight and handling comparable to a “muscle” trail.
• Flawless aesthetic integration (no screen, hidden cables).
• Expandable battery without carrying extra daily weight.

To improve

• 2-piston brakes a bit tight for aggressive riders — easy upgrade to Deore 4-piston.
• Rekon rear tire may fall short in deep mud.

Frequently Asked Questions

What size should I get if I'm 1.78m tall?

Most riders between 1.75m and 1.83m choose the M size, but if you prefer more stability on descents, the L also fits thanks to the short seat tube.

Can a higher capacity battery be fitted?

There's no "internal XL" battery, but the official Range Extender adds 252 Wh and fits in the bottle cage without changing the warranty. :contentReference[oaicite:13]{index=13}

How much does it weigh with pedals, bottle cage and mudguards?

In size M it weighs around 20 kg ready to ride, depending on the accessories. :contentReference[oaicite:14]{index=14}

Conclusion

The Orbea Rise H30 proves that an affordable eMTB can be light, quiet, and fun . If you want to increase your rides without losing that "pure bike" feel, this Rise Hydro is your best ally.
